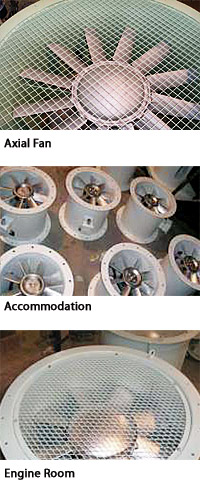

Axial type fans are designed for Marine and Industrial applications where large volumes of air are required at moderate to high pressures.
And so, A large selection of outlet positions, casing geometries, casing thicknesses and materials is available for the various impeller types.
The tubular design, high efficiency rotor and integral straightening vanes provide high performance using minimal space.
These include belt drive with manually adjus -able blade pitch and direct drive with manually adjustable blade pitch.

Design Features

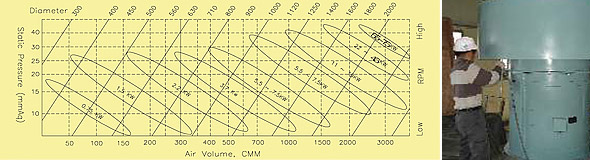

Capacity ------------------------------------ up to 4000 CMM
Pressure ------------------------------------- up to 200 mmAq
Inlet size --------------------------------- 300 up to 2000 mm
Casing thickness -------------------------- 1,5 up to 16 mm
Impeller types ------------------ AC, AS (adjustable pitch)
Motor frame size ------------------------------- 63 up to 315

- Electricity supply ; single or three-phase to suit a wide range of voltages and frequencies

- Motors maker ; korea & overseas Ex e, Ex d
Drive type ----------------- Coupling-, belt- or direct drive

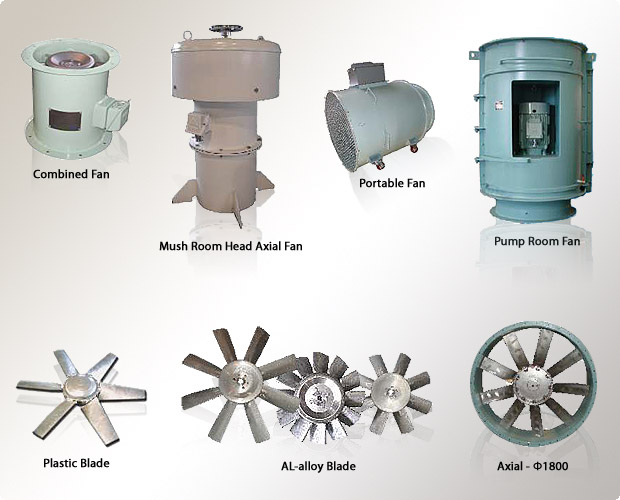

Casing form? Combined casing, swing out shot casing
Surface treatment --- Primer, finish, hot-dip galvanized

Material
-Impeller --------- cast aluminium, engineering plastic
-Casing -------------- Steel , aluminium, stainlesssteel

Thermal & IP Protection
Can be provided as an optional extra.

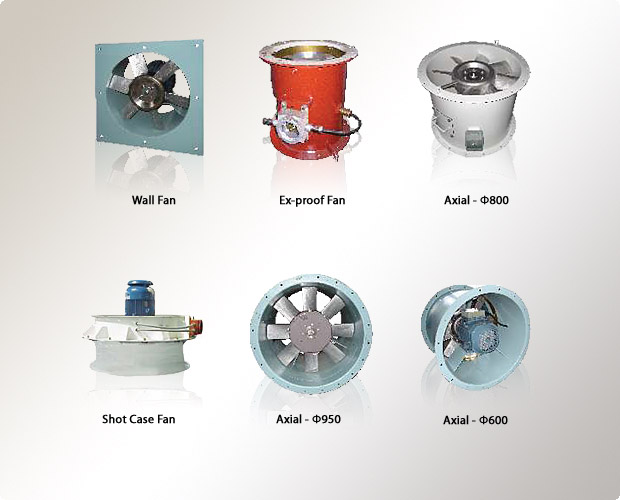

Explosion Proof

(Hazardous area application)
VENTIA fans can be made to accommodate requirements for corrosive fume and explosion riskapplications.
The casing of our explosion proof designs is lined with a spark protection plate of naval brass, which will cause no sparking due to friction or impact with the aluminium impeller.
And additionally, special coatings and alternative materials, such as stainless steel, are available as well as increased safety motors and plastic impellers.
